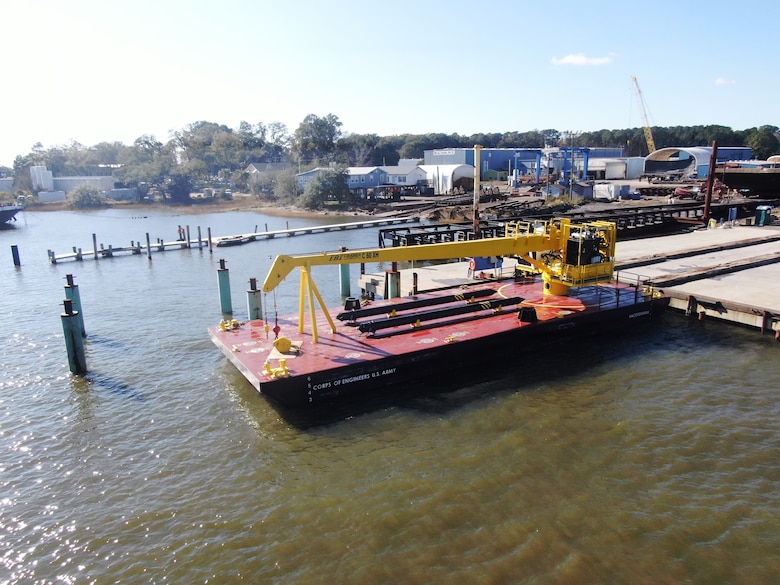

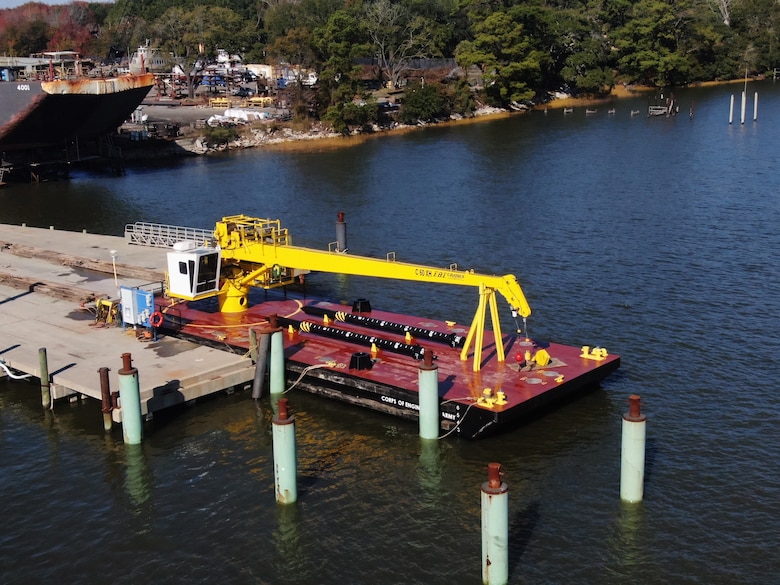

USACE Nacotchtank Floating Crane

Delivered: January 2021

Marine Design Center
Published Feb. 9, 2021
The U.S. Army Corps of Engineers' Marine Design Center managed the design and construction of the Nacotchtank Floating Crane on behalf of the U.S. Army Corps of Engineers Baltimore District. The vessel was delivered in January of 2021.

The U.S. Army Corps of Engineers' Marine Design Center managed the design and construction of the Nacotchtank Floating Crane on behalf of the U.S. Army Corps of Engineers Baltimore District. The vessel was delivered in January of 2021.

The U.S. Army Corps of Engineers' Marine Design Center managed the design and construction of the Nacotchtank Floating Crane on behalf of the U.S. Army Corps of Engineers Baltimore District. The vessel was delivered in January of 2021.

The U.S. Army Corps of Engineers' Marine Design Center managed the design and construction of the Nacotchtank Floating Crane on behalf of the U.S. Army Corps of Engineers Baltimore District. The vessel was delivered in January of 2021.

Vessel Owner: United States Army Corps of Engineers
Vessel Builder: Metal Trades, Inc. Hollywood, SC
Project Management Team: USACE Marine Design Center and USACE Baltimore District
Vessel Operation Team: USACE Baltimore District – D.C. Drift Project – Washington, DC.

Vessel Particulars:

  • Hull Length (molded): 85’-0”
  • Hull Breadth (molded): 30’-0”
  • Hull Depth (molded): 7’- 0”
  • Lightship Draft: 2’-3”
  • Rated Deck Load: 1,200 psf.

Machinery, Equipment and Crane Particulars

  • Crane Model: EBI Cranes Model C60XHB-60
  • Main Hoist Capacity: 30,000 lbs. @ 15’ radius
  • Auxiliary Hoist Capacity: 4,500 lbs.
  • Boom Length: 60 feet fixed
  • Regulatory Standard: API.2C Medallion

Pedigree: ABS Maltese Cross A1 Barge for Service on Rivers and Inland Waterways, with Reinforcement B, CRC (Crane Register Certificate)
