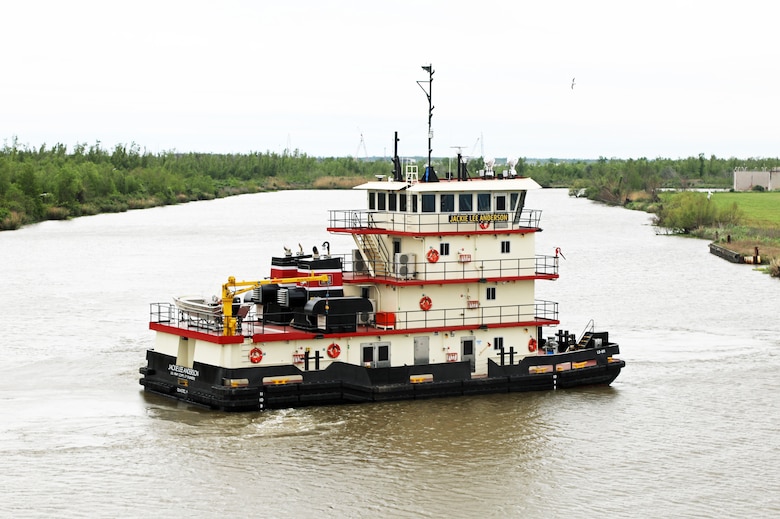

PHILADELPHIA -- Vessel Owner: United States Army Corps of Engineers
Vessel Builder: Thoma-Sea Marine Constructors, LLC., Houma, LA.
Project Management Team: USACE Marine Design Center and Louisville District
Vessel Operation Team: USACE Louisville District, Olmsted Locks and Dam
Year Built and Classed: 2023
Vessel Certification: American Bureau of Shipping Class
✠ A-1 Towing Vessel, River Service w/ ✠ AMS
Vessel Particulars
- Length Overall: 82’-0”
- Breadth: 36’-0”
- Hull Depth: 11’- 0”
- Draft: 8’-4¼” (at full load)
- Displacement: 516 Long Tons (at full load)
- Accommodations: 16 Crew
- Fuel Capacity: 15,200 Gal.
- Potable water: 7,100 Gal.
- Lube Oil Sys: 550 Gal.
- Ballast Sys: (2) Tanks 11,300 Gal.
- Black/Gray Water Tank: 8,632 Gal.
Machinery, Equipment, and Special Features
- Main Engines: (2) Cat C32 Tier IV, 1333 HP each @ 800rpm
- Z-Drives: (2) Steerprop Model SP14-WD
- Propellers: (2) Steerprop - 4 Blade, 59 inches Dia.
- Generators: (2) Northern Lights M99C13 - 150 kW each
- Deck Winches: (2) Schoellhorn-Albrecht BW65R-7.5E-G
- Searchlights: (2) Carlisle and Finch 1000W Xenon Remote Control
- Radar and Electronics: Furuno Radars, GPS, AIS, Satellite Compass
- Deck Crane: Rapp Marine HP-18-2F, 2,100 lb Capacity at 18 foot reach
- Air Compressors: (2) Quincy QR-25, Model 340, 80 Gal. Tank
- Fire Detection and Alarm: Herbert S. Hiller Corp / Siemens Cerberus Pro
- Fixed Fire Suppression: Herbert S. Hiller Corp / Kidde CO2
